Balboa VS Series VS501Z 5.5kw Bundle with Mini VL200 Topside panel

SKU 54220-Z
by Balboa

Shipping Time

Leaves Warehouse in 1-2 business days

Original price $1,100.55
Original price $1,100.55 - Original price $1,100.55
Original price $1,100.55
Current price $824.95
$824.95 - $824.95
Current price $824.95
Notify Me When Available

The VS Series Hot Tub Control Systems were designed using Balboa's patented M7 temperature and flow sensor technology and a new universal control platform. With the M7 technology onboard you will have the most reliable spa pack on the market, No more sensor failures!

The VS501Z features a convertible 120/240v power supply and so can easily be installed on all power supplies, The 5.5kW M7 heater is the most advanced on the market.

Will Operate as follows:

  • 1 x 2 speed pump connected to J23
  • 1 x 1 speed pump or air blower ( Can not operate both ) connected to J26
  • 1 x dedicated circulation pump ( If installed ) such as the Waterway Iron Might  connected to J47
  • Ozone generator ( if installed ) connected to J29
  • 12v light connected to J20

Control Pack features:

  • Replaces failure-prone mechanical pressure/flow switch
  • Can be plumbed to either suction or pressure side of pump
  • 120/240V convertible power
  • Custom plastic enclosure
  • M7 flow/ temperature sensors
  • 5.5kw Heater

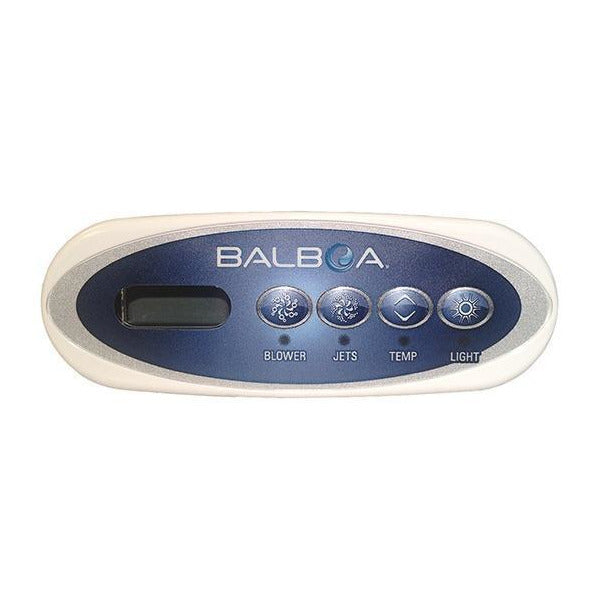

  • VL200 Mini oval LCD Topside # 52144 (4.34” x 1.58”)
  • Pump 1 @120/240v 12Amps max
  • Pump 2 @120/240v 12Amps max

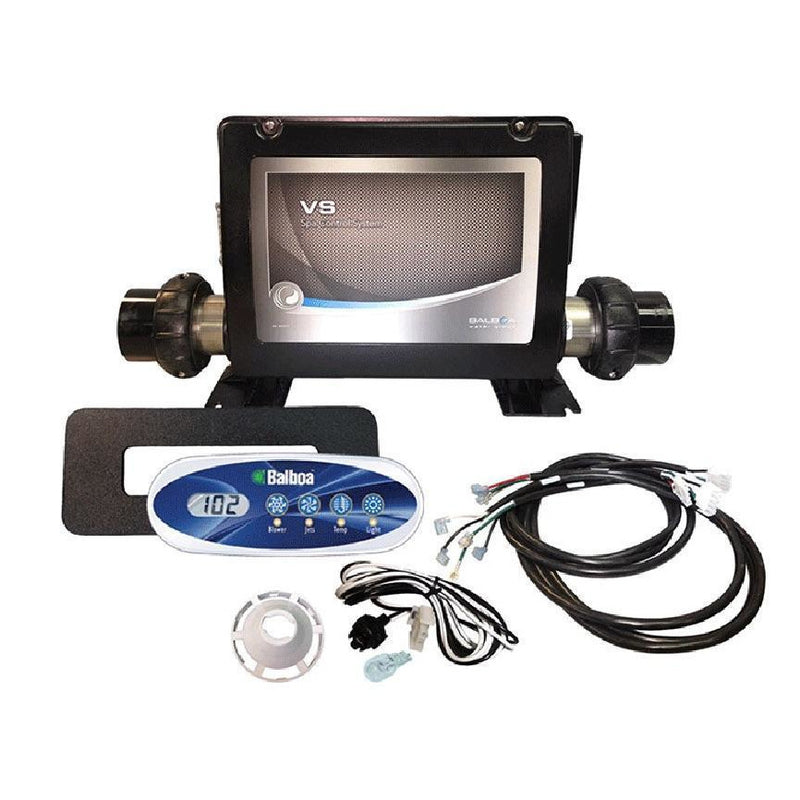

VS501Z Kit Complete with:

  • 5.5kw
  • VS501 Spa Pak
  • VL200 Mini Oval LCD Topside # 52144 (4.34” x 1.58”)
  •  Power cords for- Pump 1-2Speed, Pump 2-1Speed ( Or Blower ), Ozone & 12v Light

Balboa VS501 Tech Book

Balboa Spa Control systems, including electronic parts, are shipped brand new and undergo factory testing before being sold. Due to their inability to be resold, these systems and parts are non-returnable according to our return policy. Additionally, all Balboa products are backed by the original manufacturer's warranty.
