Balboa BP7 Replaces - BP501 Spa Pack, 5.5KW Heater - G5361
Shipping Time
Leaves Warehouse in 1-2 business days

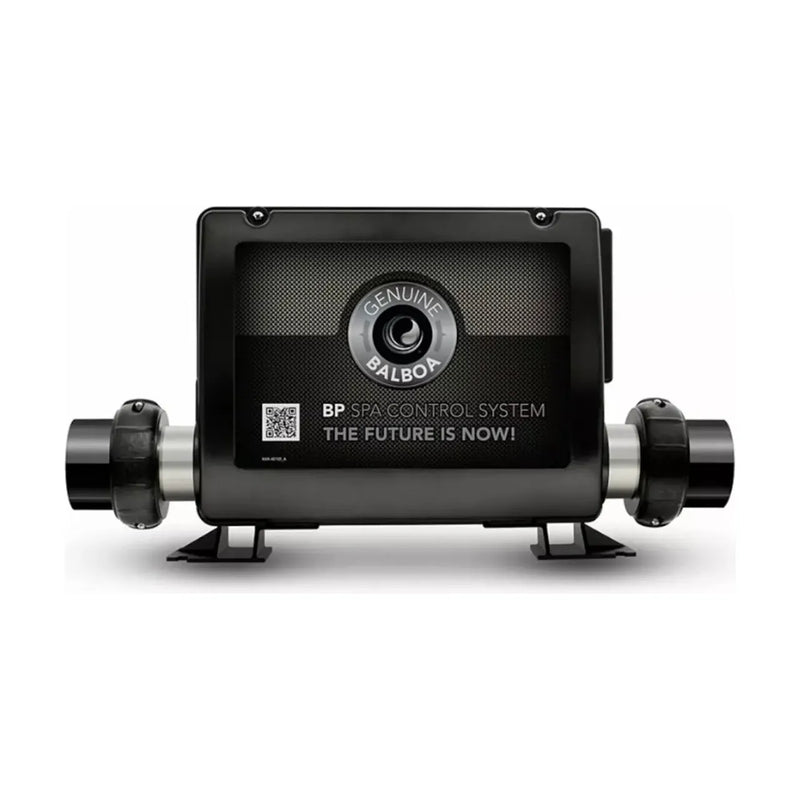

The Balboa B7 spa pack with 5.5kw heater features the the M7 sensor system which makes this one of the most advanced and reliable spa packs on the market.
The M7 system has no external sensors for flow, temperature and pressure, all the sensors are placed onboard with in the spa pack which makes the M7 the most reliable system on the market.
- Can replace any Balboa BP System* while using the existing topside that is already installed on the spa.
- Can replace any Balboa VS or EL System* when you match it with any TP or SpaTouch topside panel
System Features -
- Pump 1 :120V or 240V – 2 Speed pump – 12 Amps max
- Pump 2 or Blower :120V or 240V – 2 Speed – 12 Amps max
- Optional Pump 3 :120V or 240V – Single Speed - 12 Amps Max ( TP700 Topside control needed )
- Optional Pump 4 : 120v or 240v - Single Speed - 12 Amps Max( TP700 Topside control needed )
- Optional 24 Hour Circulating Pump :120V or 240V (23GPM)
- Ozone :120V or 240V
- Light :12V
- A/V : 120V or 240V

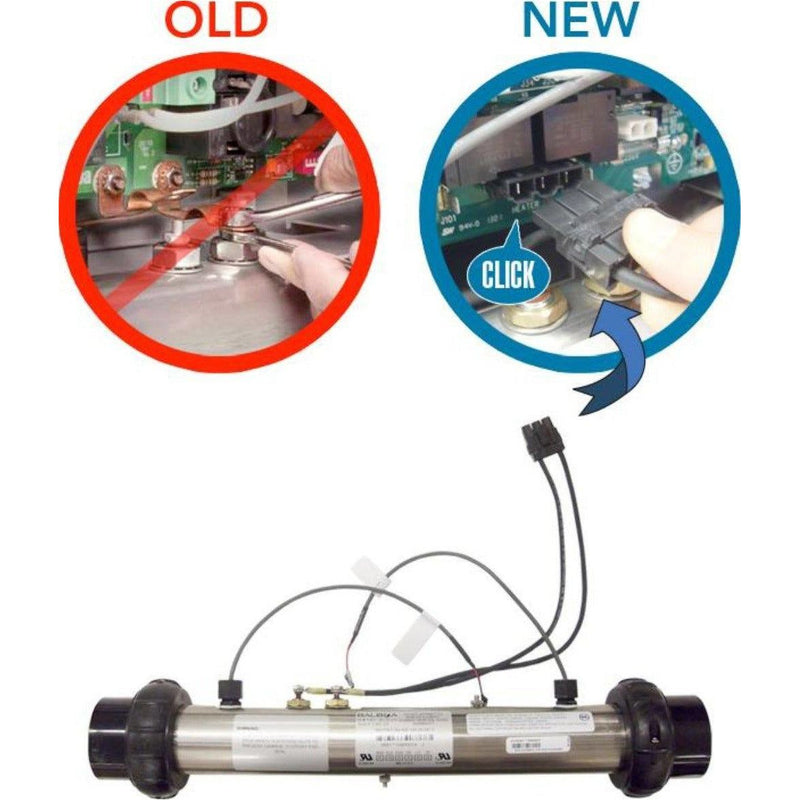

- Heater: 5.5kW, 15” Stainless Steel. 23GPM flow required. ( 5.5kW@240V or 1.375kW@120V )
- Optional Wifi Contol : ControlMySpa Compatible
-
To add Pump 4 you will need to purchase the Balboa splitter cable that attached to the pump 2 expander board - Balboa Splitter Cable
Replaces: BP501 (All ) can use existing top side control panel , VS spa packs ( All ) You will need to upgrade to a TP top side control panel
Balboa BP7 Tech installation Manual
Return Policy for Electronic Parts:
Balboa Spa Control systems are shipped directly from the factory, fully tested and brand new. Please note that for safety and quality reasons, electronic parts cannot be returned and resold. For more details, refer to our return policy. Additionally, all Balboa products are backed by the original manufacturer's warranty.
