BALBOA KIT BP100G2 W/TP200T REMOTE HEATER 2SP PUMP CABLE - G6412
Shipping Time
Leaves Warehouse in 1-2 business days
The Balboa BP100G2 bundle features a remote 4.0KW heater and 4-button TP200 topside control panel, delivering straightforward operation for smaller spas. Designed for retrofitting applications, it supports 1 or 2 pump configurations and operates on 120 volts for single-pump setups with proper configuration. Compact and reliable, this system provides the core functionality needed for comfortable water temperature and circulation control.
Can replace the Balboa VS100 spa pack system
BP100 system specifications :
- Pump 1: 120V or 240V - 1 or 2 speed
- Ozone generator: Optional 120V or 240V
- 24 hour circulation pump : Optional (min 23 GPM and 1-1/2" plumbing ) 120V or 240V
- Light :12v
- Heater will be 1.0kw with 120v or 4.0kw with 240v supply
- Optional Wifi control : ControlMySpa Compatible

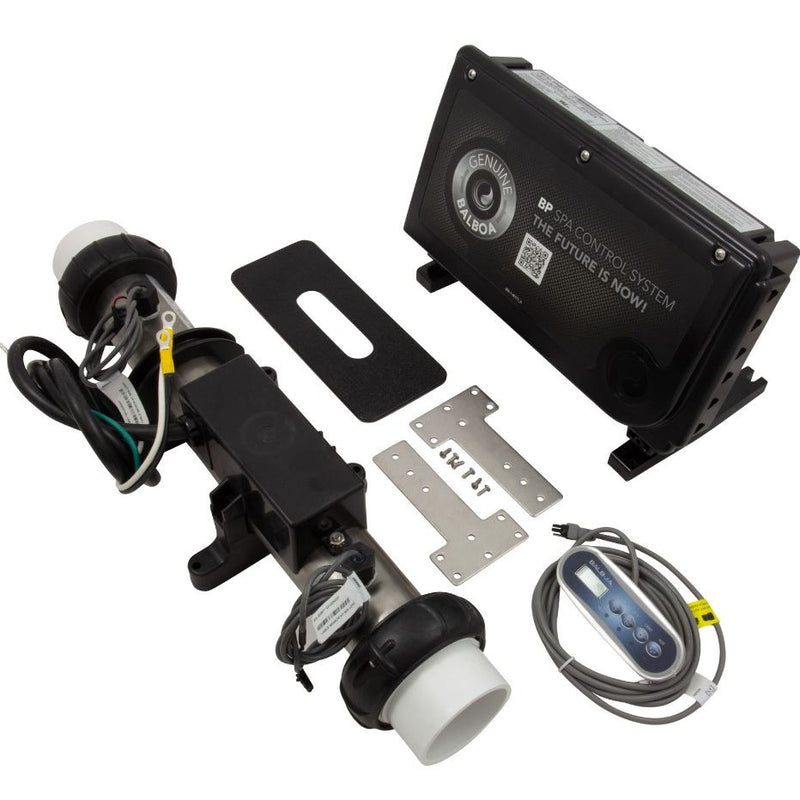

Comes with :
- BP100G2 Control System
- 4.0kw / 1.0kw heater with sensorsĀ - 15" long x 2" diameter
- TP200 Topside control panel. 4.34" x 1.58"
- 2 speed pump calbe
-
8 foot Light cord
TP200 Top side control panel features
- TP200 Topside control panel. 4.34" x 1.58"Ā
- Topside control panel overlay - Heat -Jets 1 - Light - Aux
-
Keypad adaptor plate 9" x 4" - Covers existing hole, Self adhesive
