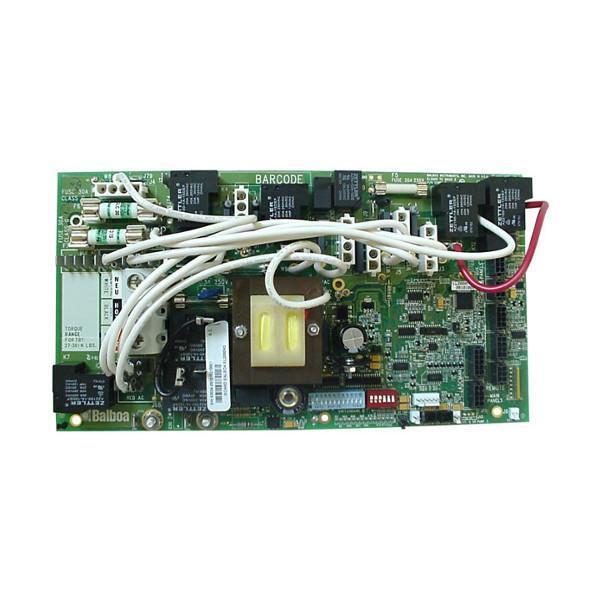

Balboa EL 2000 M3 Board - 53834-05

Balboa replacement board part # 53834-05 compatible with some Beachcomber, Coleman, Hydropools and Granville Spas (Does not fit or work as a replacement for the 5321-01/02/03 board or the 51593-01) This Balboa board was used in some Balboa spa packs, such as model 53884-05 and the 55065-04.

The EL200 Can accommodate as follows

• Pump 1 - 2 speed 240v
• pump 2 - 1 speed 240v -
• Blower - 1 speed  240v
• Ozone - 120v
• Spa light 12v
• Audio output 120v
• Heater - up to 5.5kw 240v

* Please note due to an update from Balboa, Pump 2 is now only 1 speed even though the documentation says it is 2 speed

Balboa warranty document

EL2000 TECH SHEET
