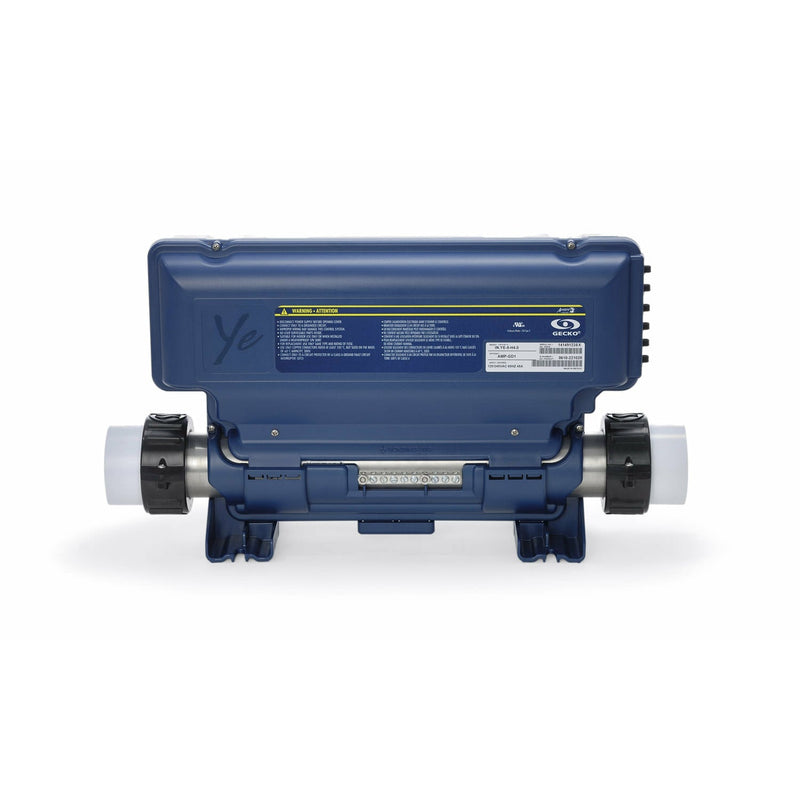

Gecko 'Y' Series IN.YE-5 4.kw Spa Pack Inc 2" Heater -0610-221046-355

IN.YE-5-H4.0-AMP-V2-GD3

 - Details

• IN.YE-5 Spa Pak, Runs Pump 1: 2sp, Pump 2: 2sp, Blower, Circ, Ozone, Light, 4kW heater, 5 outputs total (dim 19.6”x10.75”x2.87”)Works with keypads in.k200, in.k19, in.k35, in.k450, in.k600 static, in.k120 (auxiliary) and in.touch Wi-Fi module.

Features:

• IN. keypad Compatible (not included)
• Pump 1 -2 speed
• Pump 2 - 2 speed
• Heater - Standard 2"(included)
• 12 V AC light
• Configurable relays
• Solid-state water flow detection: No pressure switch to adjust
• IPX5 rated waterproof design
•  Preloaded configuration allows fast and easy installation
•  in.touch WiFi module compatible
• 120/240 V convertible
• Each output voltage can be configured 120/240 V
• AMP, Quick Connect, JJM adaptor available
•  Aeware keypad compatible
• Minimum flow rate of 20GPM required

Geck 'Y' Series handy guides:

• Gecko 'Y' Series Quick start guide
• Gecko 'Y' Series Tech hand book
• Gecko 'Y' Series Wiring diagram guide

Images and content by kind permission of Gecko
